Harvia Cilindro PC90E 9KW Sauna Heater
Harvia Cilindro PC90E 9KW Sauna Heater
Couldn't load pickup availability
Stylish, High-Performance Electric Sauna Heater for Home Use

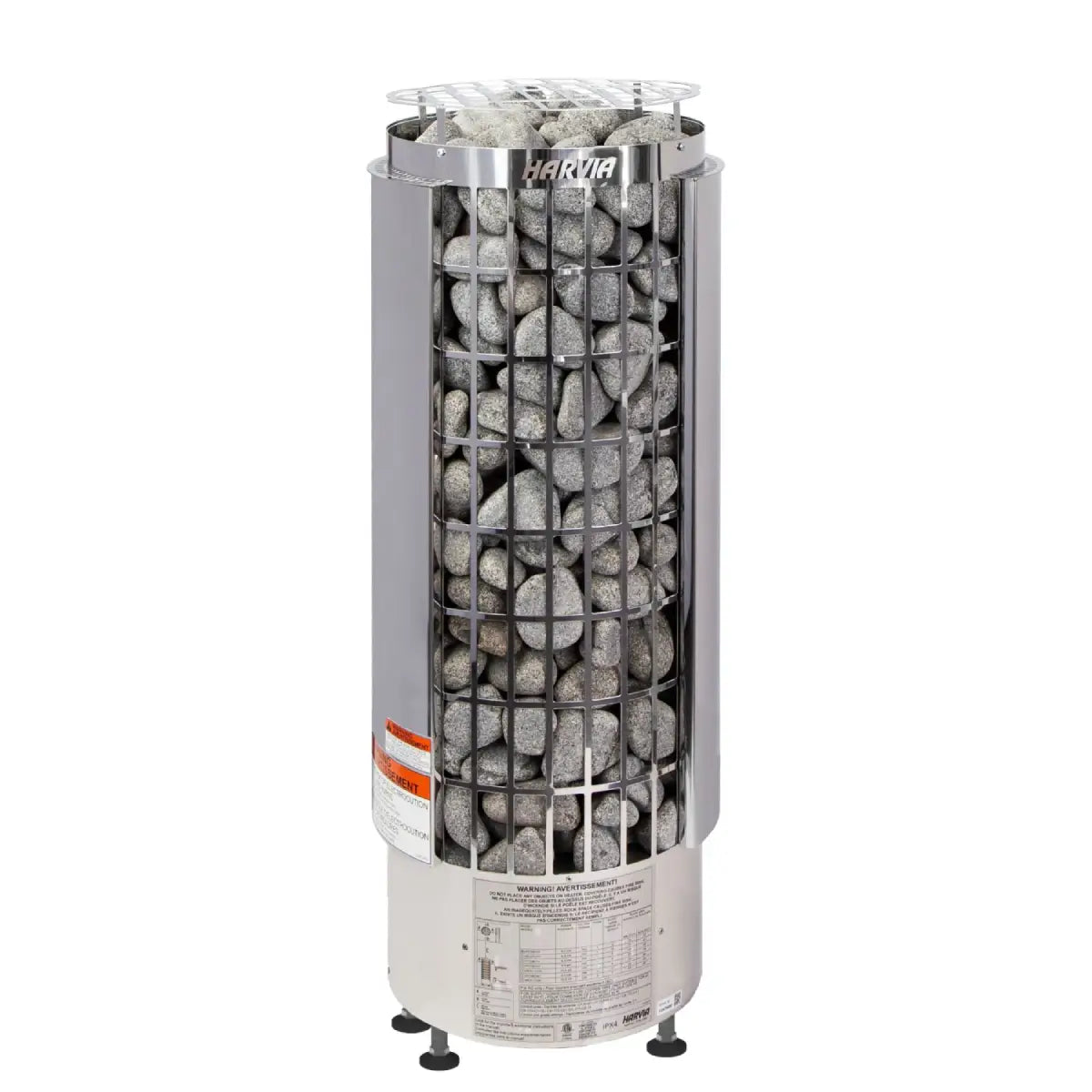

The Harvia Cilindro PC90E 9KW Sauna Heater is a floor-standing electric sauna heater designed for residential sauna rooms between 282 and 494 cubic feet. With its tall stainless steel cylinder design and large 200 lb stone capacity, the PC90E delivers soft, consistent heat and rich steam for an authentic Finnish sauna experience.
Built in Finland, the Cilindro PC90E combines reliable performance with a compact footprint that works well in corner or side-wall installations. Its partially open front allows water to be applied to the side or top of the stone column, giving bathers more control over the intensity of the steam.
Key Features
- 9KW heating capacity for sauna rooms from 282 to 494 cubic feet
- Large 200 lb stone capacity for soft, even steam
- Floor-standing stainless steel cylinder design

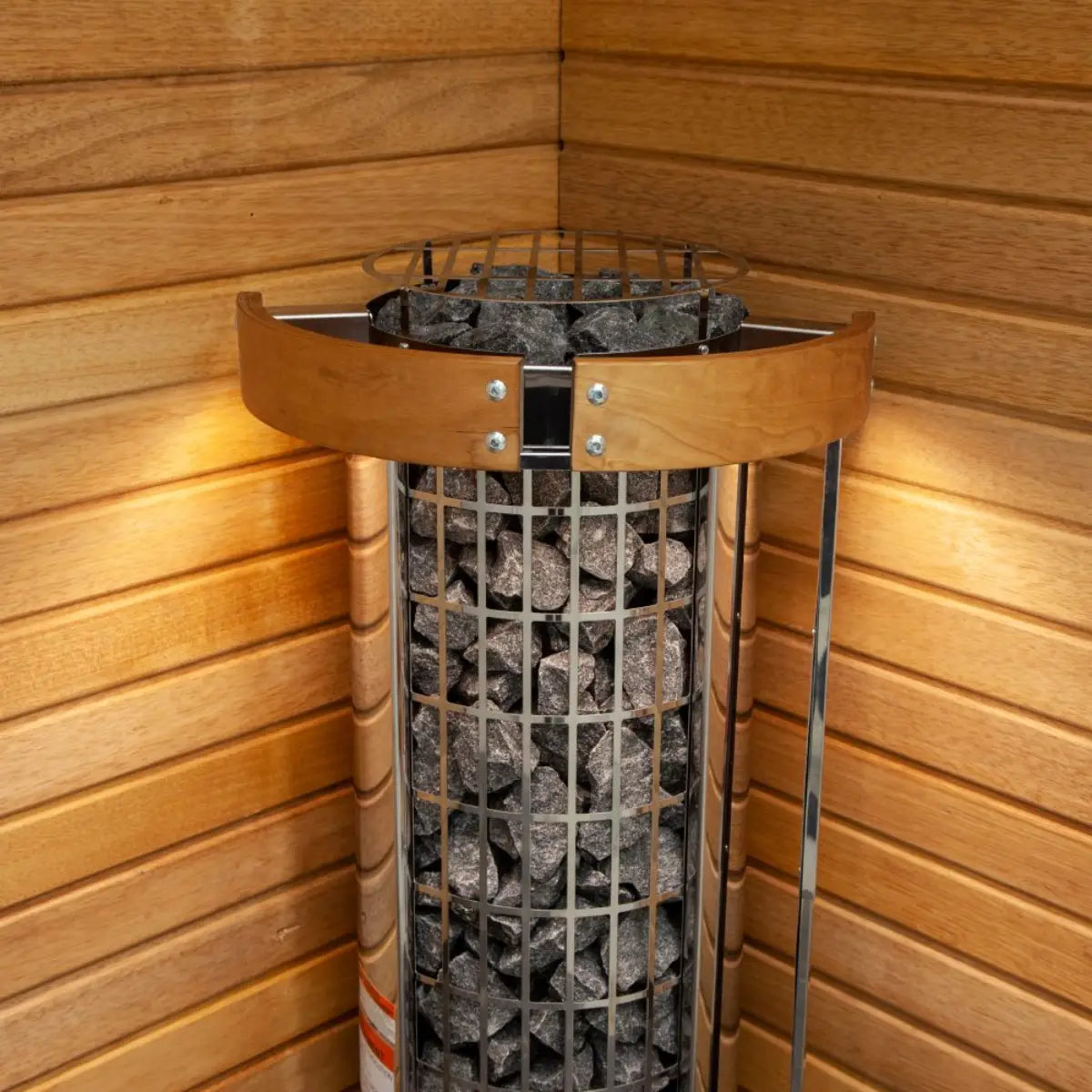

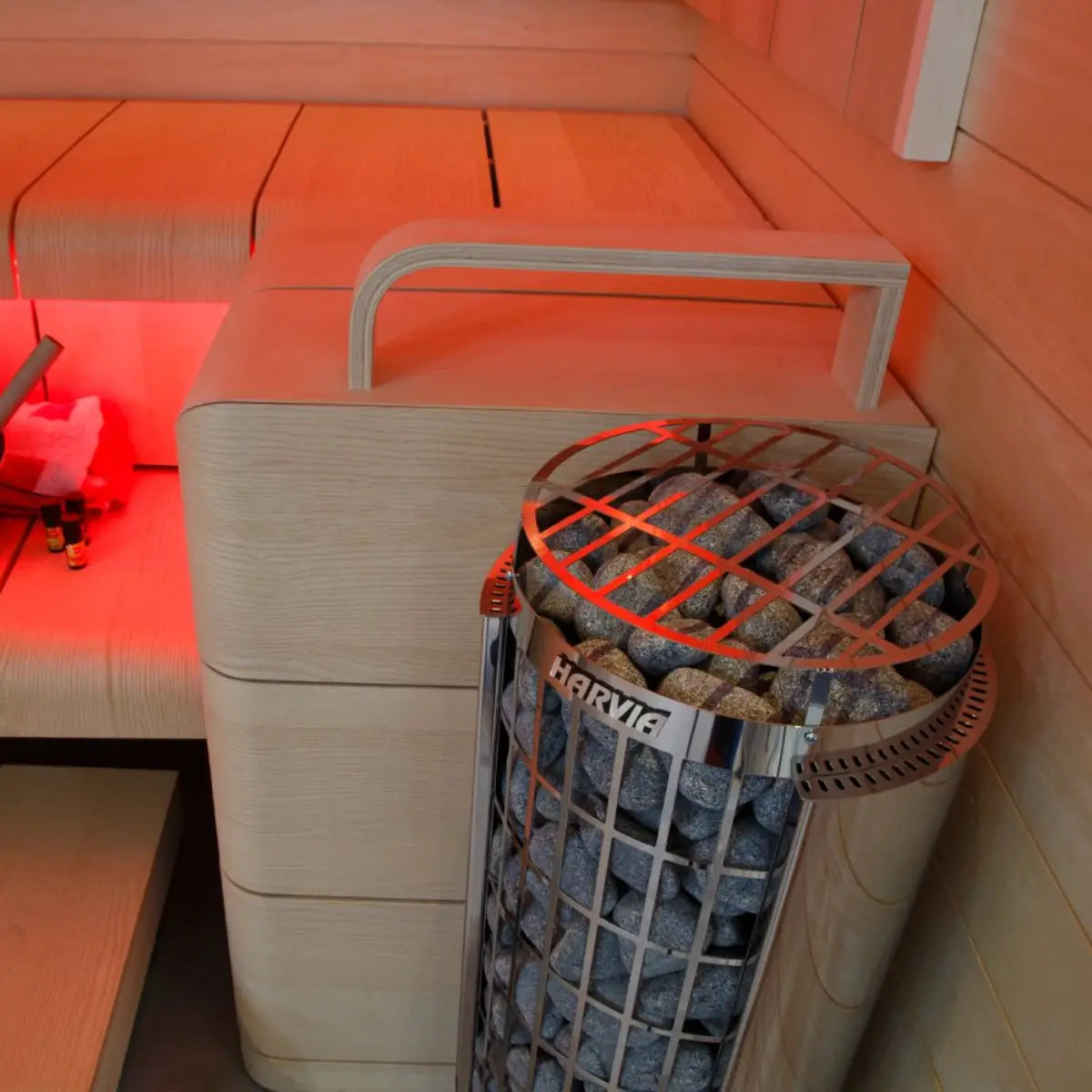

- Suitable for corner or side-wall placement
- Open-front design allows water to be applied to the side or top of the stone column
- Compatible with Harvia Xenio digital controls
- UL Listed for safety compliance
- Designed and manufactured in Finland
Technical Information
The Harvia Cilindro PC90E is engineered for home sauna rooms that require strong heat output, high stone capacity, and a compact installation footprint. Its open cylinder design helps distribute heat evenly while allowing the stones to store and release heat throughout the sauna session.
This model requires a compatible external digital control system. Manual control is not supported or recommended for this heater.
Control Requirements
- Digital Control Unit: CX30
- Contactors: FX404
- Relay Box: F-2T
What's Included
- Harvia Cilindro PC90E 9KW Electric Sauna Heater
- Installation and Operation Manual
- Mounting Hardware
Important Notes
- Sauna stones required for operation and sold separately
- Requires up to 200 lbs of sauna stones
- External digital control system required and sold separately
- Manual control is not available for this model
- Professional installation recommended
Electrical Requirements
| Specification | Details |
|---|---|
| Power Output | 9,000 Watts (9 kW) |
| Voltage Phase | 240V / 1-phase |
| Amperage | 37.5 A |
| Main Breaker Size | 50A |
| Wire Size to Sub-panel | (2) #6 + Ground |
| Sub-panel Breaker | (2) 30A |
| Wire Size from Sub-panel | (4) #10 + Neutral + Ground |
Installation Manual
