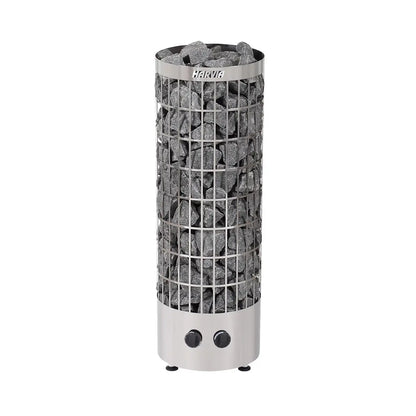

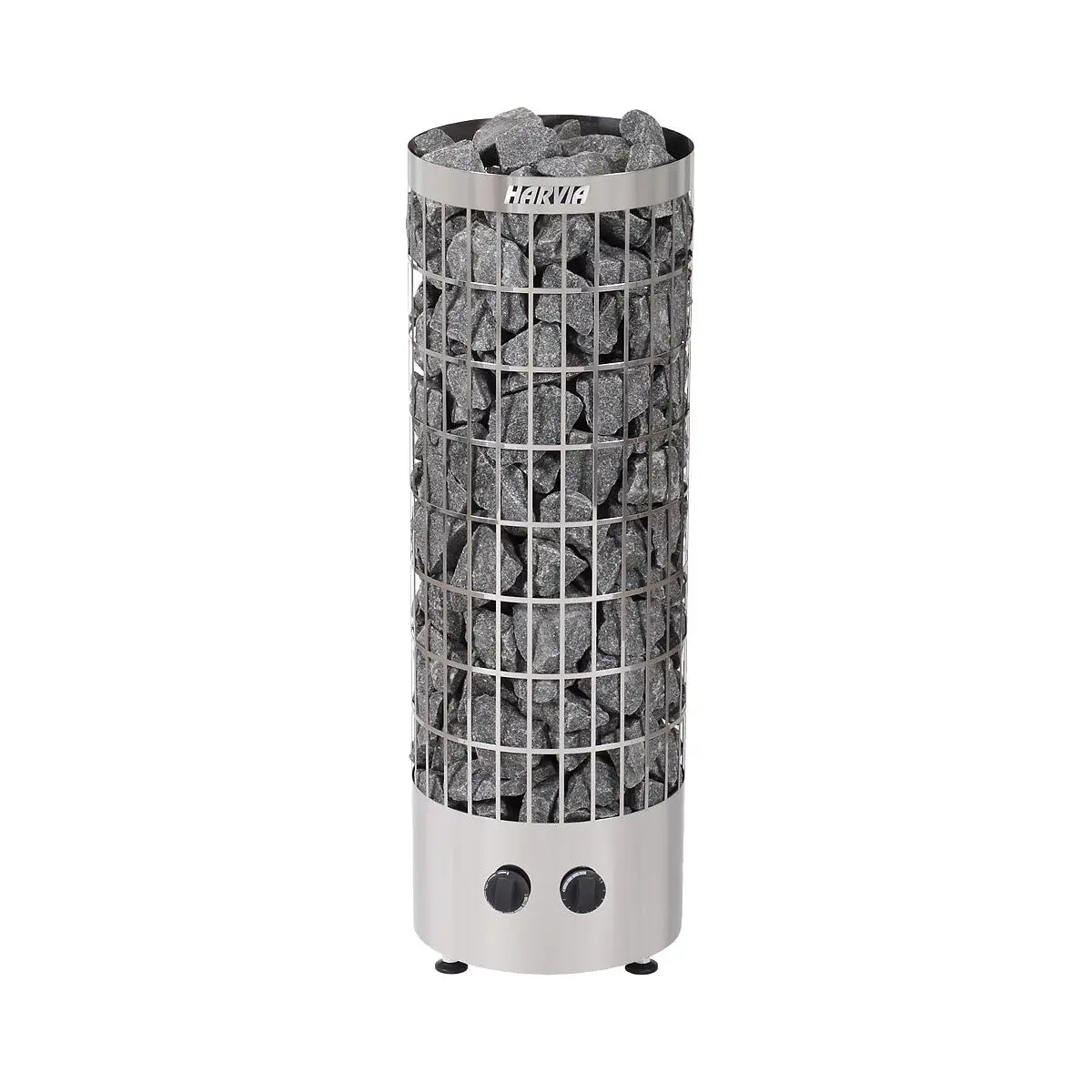

Harvia Cilindro PC90 9KW Sauna Heater with Built-In Controls
Harvia Cilindro PC90 9KW Sauna Heater with Built-In Controls
Couldn't load pickup availability
The Harvia Cilindro PC90 9KW Sauna Heater with Built-In Controls combines powerful performance, modern Scandinavian design, and exceptional stone capacity to create an authentic Finnish sauna experience. Designed for residential sauna rooms between 282 and 494 cubic feet, the Cilindro PC90 features a distinctive tower-style construction that accommodates up to 180 pounds of sauna stones for soft, even heat and excellent steam production.
Manufactured in Finland and built for long-term reliability, the PC90 includes integrated controls for convenient operation without the need for a separate control unit. Its compact footprint and floor-standing design make it an excellent choice for a wide range of sauna layouts.
Key Features
- 9KW heating capacity for sauna rooms between 282 and 494 cubic feet
- Built-in controls with timer and preset functionality
- Holds up to 180 lbs of sauna stones for enhanced steam production
- Distinctive tower-style stainless steel design
- Floor-standing installation with optional corner placement
- Designed and manufactured in Finland
- Efficient heat retention and even temperature distribution
- UL Listed for North American safety standards
- Compact footprint for flexible sauna layouts
Technical Information
The Harvia Cilindro PC90 is engineered to maximize the benefits of a large stone capacity while maintaining efficient heat performance. Its open tower design allows bathers to enjoy soft steam by pouring water over the side or top of the stone column. Built-in controls simplify operation, making this model an excellent solution for homeowners seeking both convenience and authentic sauna performance.
What's Included
- Harvia Cilindro PC90 9KW Electric Sauna Heater
- Built-In Control Panel
- Installation and User Manual
- Mounting Hardware
Important Notes
- Sauna stones required for operation and sold separately
- Designed for 240V single-phase electrical service
- Requires a 40A breaker
Specifications
| Model | Cilindro PC90 |
|---|---|
| Kilowatt Rating | 9.0 kW |
| Primary Fuel | Electric |
| Minimum Adjusted Cubic Feet | 282 |
| Maximum Adjusted Cubic Feet | 494 |
| Voltage | 240V |
| Phase | 1PH |
| Nominal Amps | 37.5 Amps |
| Heater Weight | 44 lbs |
| Stone Capacity | 180 lbs (stones not included) |
| Width | 14" (355mm) |
| Depth | 13" (330mm) |
| Height | 40" (1016mm) |
Installation Manual
