Harvia Cilindro PC110E 10.5KW Sauna Heater

$1,339

Sale Sold out

Shipping calculated at checkout.

Voltage and Phase 240V 1PH

High-Capacity Electric Sauna Heater for Large Home Saunas

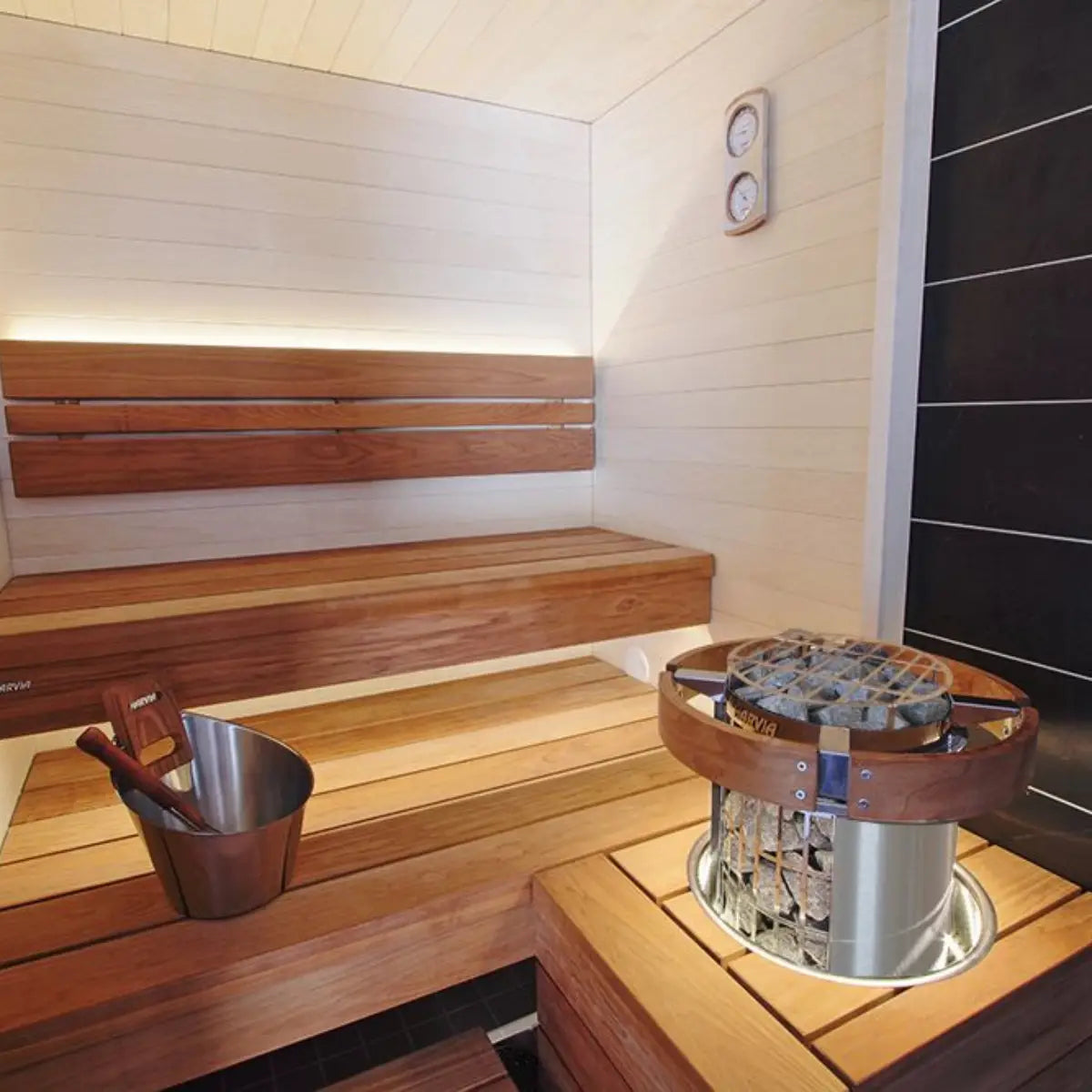

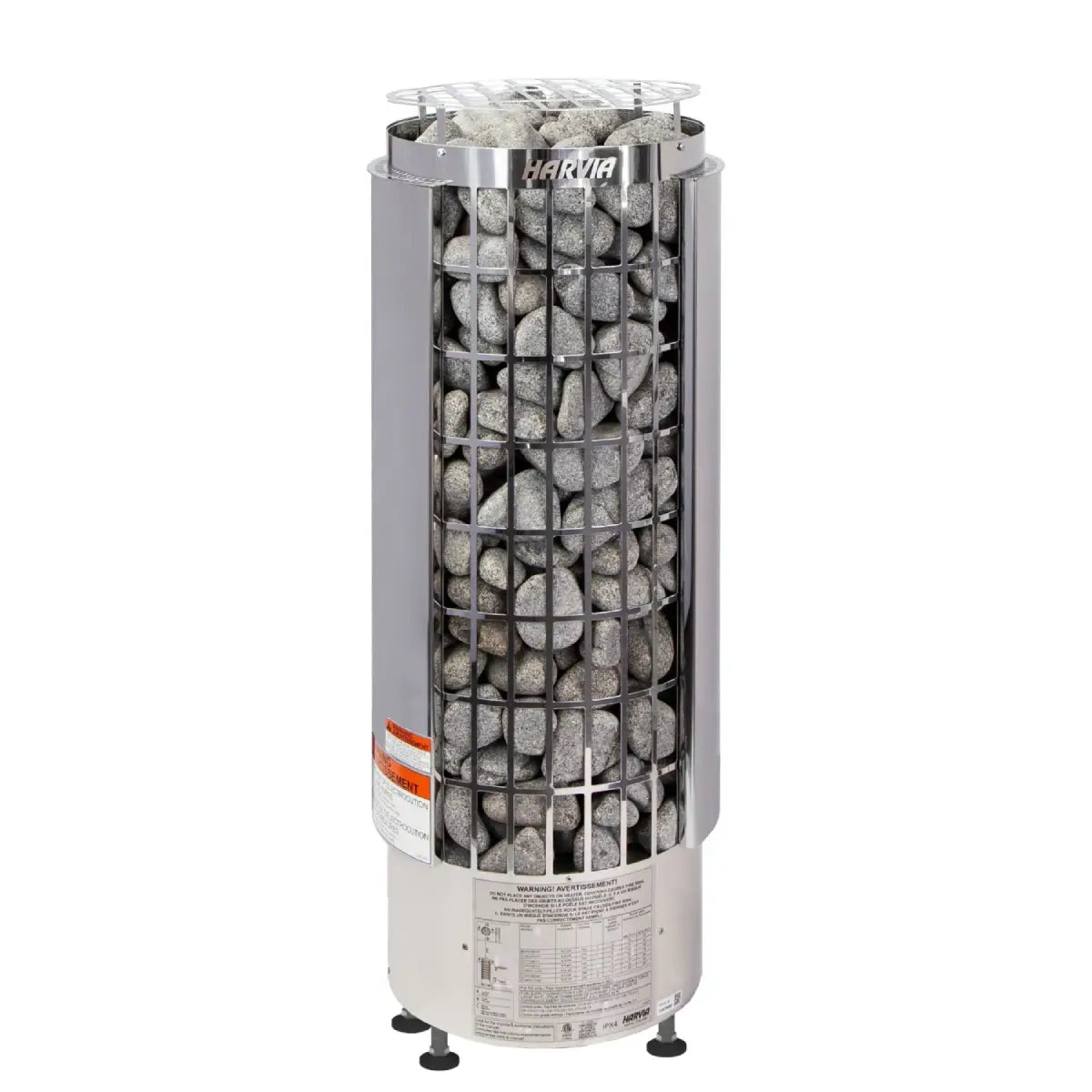

The Harvia Cilindro PC110E 10.5KW Sauna Heater is a high-capacity electric sauna heater designed for large residential sauna rooms between 317 and 636 cubic feet. Built in Finland with a stainless steel body and open stone column design, the PC110E delivers soft, consistent heat while creating a striking centerpiece inside the sauna.

With space for up to 270 lbs of sauna stones, the Cilindro PC110E produces rich steam and excellent heat retention. Its partially open outer shell allows water to be applied to the top or side of the stone column, creating a sauna experience that feels traditional while offering the convenience of electric heating.

Key Features

Model: Harvia Cilindro PC110E
Power Output: 10.5 kW
Voltage Options:
- 240V / 1-phase
- 208V / 3-phase
Recommended Room Volume: 317–636 cubic feet
Stone Capacity: 270 lbs (stones sold separately)
Construction: Stainless steel body and heating elements

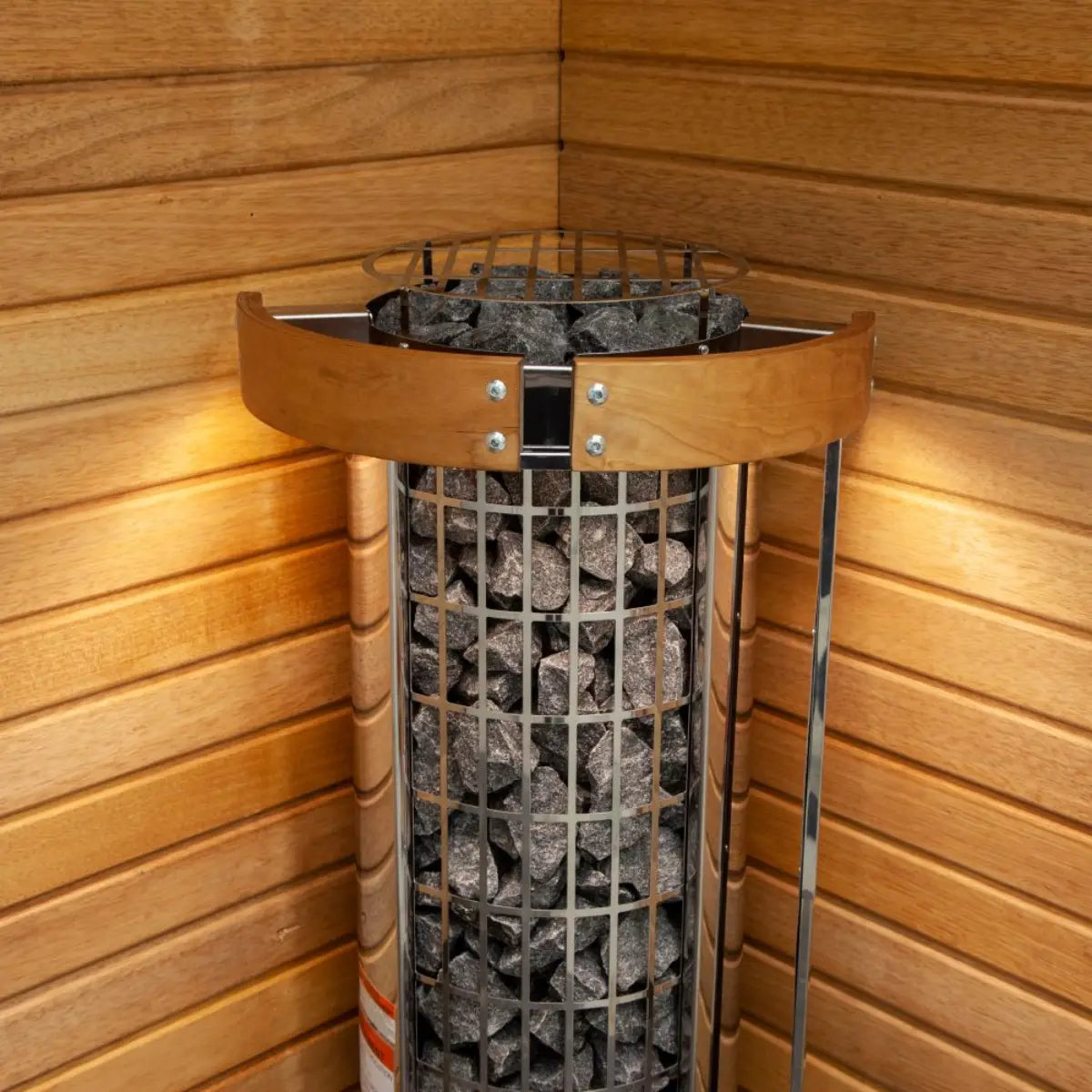

Installation: Floor model, corner or side-wall placement
Dimensions: 15½″W x 15″D x 45¼″H
Heater Weight: 50 lbs (excluding stones)
Made in Finland
UL Listed

Control Requirement (based on electrical configuration)

240V / 1-phase (PC110E-U1)
Requires:
- Digital Control: CX30 control unit
- Contactors: FX404
- Compatible Relay Box: F-2T
208V / 3-phase (PC110E-U3)
Requires:
- Digital Control: CX30 control unit
- Contactors: FX503
- Compatible Relay Box: F-2T

Note: Manual control is not available or recommended for this model.

Electrical Requirements

Electrical Spec	240V / 1-phase (PC110E-U1)	208V / 3-phase (PC110E-U3)
Power Output	10,500 Watts	10,500 Watts
Amperage	43.75 A	29.2 A
Main Breaker Size	50A	40A
Wire Size to Sub-panel	(2) #6 + Ground	(3) #8 + Ground
Sub-panel Breaker	(2) 40A	N/A
Wire Size from Sub-panel	(4) #8 + Neutral + Ground	(3) #8 + Neutral + Ground

Why Choose the Harvia PC110E?

Soft, powerful steam with 270 lbs of stone
Premium electric heater for home saunas up to 636 cu. ft.
High-end Finnish construction
Compatible with Xenio digital controls for precise temperature and timer management
Ideal for modern or traditional-style sauna rooms
